Description
MIGRO ARAY INTRA

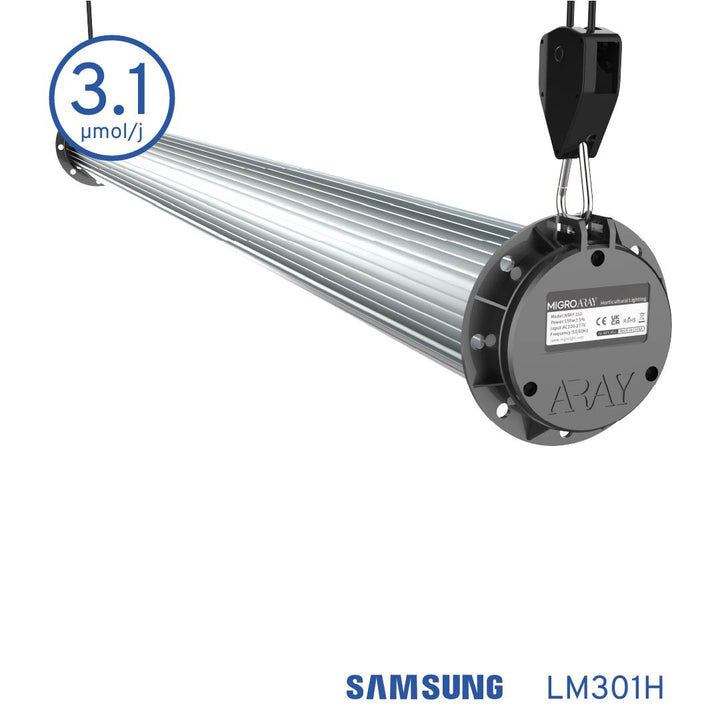

The ARAY Intra canopy 160 watt grow light is perfect for under canopy or side lighting. Can be mounted horizontally or vertically and rotated 360°. Full spectrum output with 150° light spread for deep canopy penetration
Recommended application:
4ft x 4ft or 120cm x 120cm grow space: 2 x ARAY INTRA combined with 500W top light
5ft x 5ft or 150cm x 150cm grow space: 2 x ARAY INTRA combined with 750W top light
See our post on the benefits of Intracanopy grow lighting here
| Specification | Value |
|---|---|
| Spectrum | High photosynthetic efficiency full spectrum |
| Minimum Hanging Height | 8" or 20cm |
| Photoperiod Coverage | 4ft x 4ft or 120cm x 120cm |
| Usable PPF | 496 µmols/m²/sec |
| Photoperiod Coverage | 5ft x 5ft or 150cm x 150cm |
| Usable PPF | 496 µmols/m²/sec |
| Top light coverage (2ft or 60cm spacing) | 5ft x 2ft or 150cm x 60cm |
| Average PPFD (usable PPF) | 470 µmols/m²/sec (20 Mol/12 hour day) |
| Dimmer Adjustment | |
| Late Veg and Flower | 100% |
Technical Specs
- Consumed Power Watts 160
- Voltage / Current 110V / 2.4 Amp; 220V / 1.2 Amp
- Efficiency PPF/Watt 3.0 µmols/joule
- Number of LED Bars 3
- Light Dimensions 43" x 4" or 110cm x 10cm
- Hanging Weight 7.2lbs or 3.3 Kg
- Hanging System Cable hanger and ratchet hanger
- Full spectrum: 15% Blue (short dense growth), 35% green (canopy penetration),48% red (High photosynthetic efficiency), 1.2% Far red
- LEDs Samsung LM301H white LEDS Hongli 660nm Reds
- LED Protection Acrylic conformal coating (waterproof)
- Driver Dimming 20 to 100% PWM
- LED Driver High Efficiency 96%
- Cable length 15ft or 4.5m from LED driver to lamp
- IP rating: IP65
- Lifetime 50,000 hours (8.5 years @ 16hour/day)
- Warranty 3 years
- Certification CE, RoHS2, UKCA EMC, EN 55015
- Local plug type provided: US, UK, EU, AU or CH available
- Lighting controller compatible incl. AC Infinity (type B adaptor), Vivosun, Trolmaster (LMA-14) Grow flux
MIGRO ARAY Intra 160
New Aray Series
ARAY spectrum
The ARAY spectrum generates dense growth in the vegetative stage & Vigorous growth in the flowering stage with high concentration of flavonoids & terpenes.
Keep the canopy cool
Remote LED driver can be mounted outside the grow tent to keep it cool for long lifespan
Full control
Any way you want to: 0% to 100% dimming control on board, daisy chain multiple units (up to 20 units) or connect an external controller.
The complete package
We provide everything you need to grow successfully.
Extra long power cable from LED driver to light fixture
External controller compatible with connector cable
Hanging wires and ratchets to adjust height
